Brand Name : zoomlion
Model Number : ZRT600
Certification : EPA、CE
Place of Origin : Hunan, China
MOQ : 1
Payment Terms : L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability : 1000
Delivery Time : 7-10days
Packaging Details : frame
Weight (KG) : 60000
Warranty of core components : 1 Year
Core Components : Engine, Gearbox
Rated Loading Capacity : 60ton
Rated Lifting Moment : 2116.8kN.m
Marketing Type : Hot Product
EPA Certified Used Rough Terrain Crane ZOOMLION 60 Ton ZRT600
Type | Ser. No. | Item | Unit | Value |
Working performance | 1 | Max. rated lifting capacity × working radius | kg.m | 60000×2.5 |
2 | Max. load moment of main boom | kN.m | 2116.8 | |
3 | Max. load moment of main boom (fully extended) | kN.m | 1197 | |
4 | Max. lifting height of main boom (fully extended) | m | 45.1 | |
5 | Max. lifting height of jib | m | 61.2 | |
Dimensions | 6 | Overall dimensions (L × W × H) | mm | 14100×3300×3790 |
7 | Outrigger spread | mm | 7380×7400 | |
(Height × Width) | ||||
8 | Main boom length | mm | 11600 - 45000 | |
9 | Jib length | mm | 9500 - 16000 | |
10 | Boom angle | ° | -82 | |
11 | Swing range | 360° unlimited swing (Full range) | ||
Working speeds | 12 | Max. hoist rope speed (Main winch) | m/min | 130 |
13 | Min. boom telescoping out time | s | 95 | |
14 | Min. boom telescoping in time | s | 110 | |
15 | Min. boom derricking up time | s | 45 | |
16 | Min. boom derricking down time | s | 125 | |
17 | Swing speed | r/min | 0~2.4 | |
Hydraulic system | 18 | Maximum working pressure | MPa | 28 |
19 | Rate working flow | L/min | 280 | |
20 | Hydraulic oil tank capacity | L | 850 | |
Gross vehicle mass | 21 | Gross weight | kg | 45000 |
22 | Front weight | kg | 25000 | |
23 | Rear weight | kg | 20000 | |
Driving | 24 | Max. driving speed | km/h | 36 |
25 | Wheelbase | mm | 3950 | |
26 | Treads | mm | 2605 | |
(Front / Rear) | ||||
27 | Max. gradeability | % | 75 |
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
![]() |

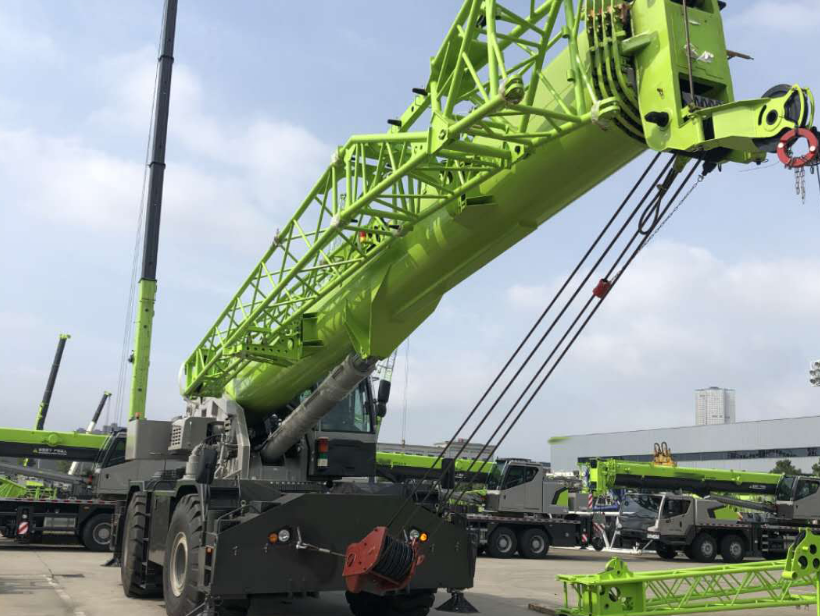

EPA Certified Used Rough Terrain Crane ZOOMLION 60 Ton ZRT600 Images |
