Lifting Machinery Used Rough Terrain Crane XCR120 Pre Owned Crane Truck

Brand Name : XCR

Model Number : XCR120

Certification : EPA、CE

Place of Origin : Jiangsu, China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000

Delivery Time : 7-10days

Packaging Details : frame

Rated Loading Capacity : 25t

Max. Lifting Height : 44m

Warranty : 1 Year

Marketing Type : Ordinary Product

Weight (KG) : 25000 kg

Feature : TRUCK CRANE

Rated Lifting Moment : 989kn.m

Span : 2250~10000mm

Contact Now

Lifting Machinery Used Rough Terrain Crane XCR120 Pre Owned Crane Truck

RT25 is equipped with the two-axle loading chassis, which has two types of drive modes, four types of steering modes and
backward-forward driving functions. It also has four sections of dodecagon main booms, Jib stowed under boom, H-type outrigger, fixed balance counterweight, as well as three working modes, including: hoisting with the support of outriggers, hoisting with the support of tire and hoisting when driving. It is widely used in oil field, mine, road and bridge construction, warehousing base and other construction sites.

Product Highlights:

1,Strong Power of Hoisting, Wide Range of Work It has 31m main booms, 13m auxiliary booms, with the longest main booms and the highest comprehensive hoisting performance in the product of the same tonner.
2,Maneuvering and Flexible, Quick and Efficient The max speed reaches 50km/h and the max gradeability is 55% and the min. turning radius is 5m. All these three factors make it flexible.

3,Economic and Environmental Protection, with Cost Saving The product is equipped with optical matching power transmission system and torque converter with lockout function, which decrease the oil consumption over 20% at high speed.

Rough terrain crane XCR120 Hot Sale

Project	Unit	Parameter
Engine Rated Power	(kw/(r/min))	142
Engine Max Torque	(N.m/(r/min))	931
Driving
Max Travel Speed	(km/h)	50
Min Travel Speed	(km/h)	2
Boom Length of Crane
Basic Boom	(m)	9.7
Longest Main Boom	(m)	31
Lifting Speed
Main Hoisting Mechanism	(m/min)	130(Unload)
Auxiliary Hoisting Mechanism	(m/min)	130(Unload)
Stretching and Retracting Time of Crane Boom
Full Stretching	(s)	70
Full Travel Boom Lifting	(s)	55
Tyre size		23.5-25-16PR
Overall machine dimension L×W×H	mm	8225×3016×3515
Model		WD10G220E21
Rated Power	kW	162
Travel Speed	Ⅰ-gear(F/R)	13/17km/h
	Ⅱ-gear(F)	41km/h

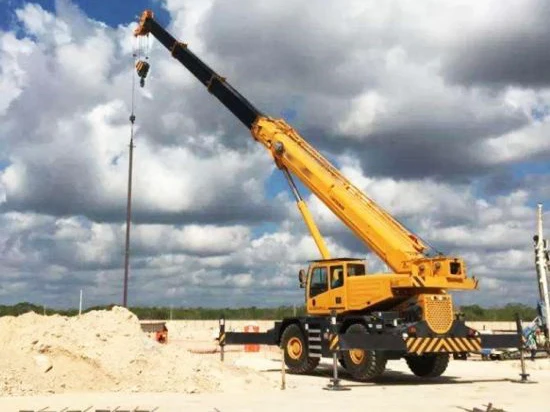

Details Images

Lifting Machinery Used Rough Terrain Crane XCR120 Pre Owned Crane Truck
