XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow

Xinrui International Trading Co., Ltd
Contact Now

XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow

  • 1
  • 2
  • 3

Brand Name : XCMG

Model Number : XCR55L4

Certification : EPA、CE

Place of Origin : Jiangsu, China

MOQ : 1

Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000

Delivery Time : 7-10days

Packaging Details : frame

Rated Loading Capacity : 55T

Max. Lifting Height : 42m

Warranty : Unavailable

Core Components : Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Weight (KG) : 41000 kg

Engine Net Power : 145kw/r/min

Max Travel Speed : 41km/h

Min Turning Radius : 9.6m

Contact Now

XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow
Products Description
XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow
XCMG Brand Rough Terrain Crane XCR55L4 50 ton Used Mobile Crane.
The total rated loads given in the rated load charts are the maximum lifting capacity when the crane is set up on firm and level ground, which includes the weight of the hook block and slings. The weight of above-mentioned devices should be deducted from the rated lifting load.

The working radius shown in the rated load charts is the radius when the load is lifted off the ground, and it is the actual value including loaded boom deflection. Take boom deflection into consideration before beginning a lifting operation.

A lifting operation is permissible only when the wind force is below grade 5 (instantaneous wind speed is 14.1 m/s, wind pressure is 125 N/m2).

Before beginning lifting operation, the operator should know the weight of the load to be lifted and its working range, and then select proper working conditions. Never operate the crane beyond the limit shown in the chart. Use the lower value from the chart when the boom length or working radius is between the range of values.

Observe the boom angle limit. Never operate the crane with the boom angle beyond the recommended limit even if a load is not being carried. Otherwise, the crane will tip.

The boom should be extended according to the telescoping code shown by digits, which means the percentage of boom sections extended.
Specification
Project
Unit
Parameter
Wheel Base
(mm)
3600
Gross Vehicle Weight When Driving
(kg)
27334
Engine Net Power
(kw/r/min)
145
Max Travel Speed
(km/h)
41
Min Travel Speed
(km/h)
1.6
Min Turning Radius
(m)
9.6
Max Gradeability
(%)
78
Min. Ground Clearance of Machine
(mm)
345
Approach Angle
(°)
20.5
Departure Angle
(°)
19.6
Braking Distance
(m)
9
Max. Rated Lifting Capacity
(t)
30
Min. Rated Range
(m)
3
Max. Load Moment of Basic Jib
(kN·m)
989.8
Radius of Gyration of Turntable Tail
(mm)
3823
Basic Boom
(m)
10.2
Longest Main Boom
(m)
34.4
Longest Main Boom + Auxiliary Boom
(m)
42.2
Basic Boom
(m)
10.8
Longest Main Boom
(m)
35
Max. Slewing Speed
(r/min)
2.5
Main Hoisting Mechanism
(m/min)
140
Auxiliary Hoisting Mechanism
(m/min)
140

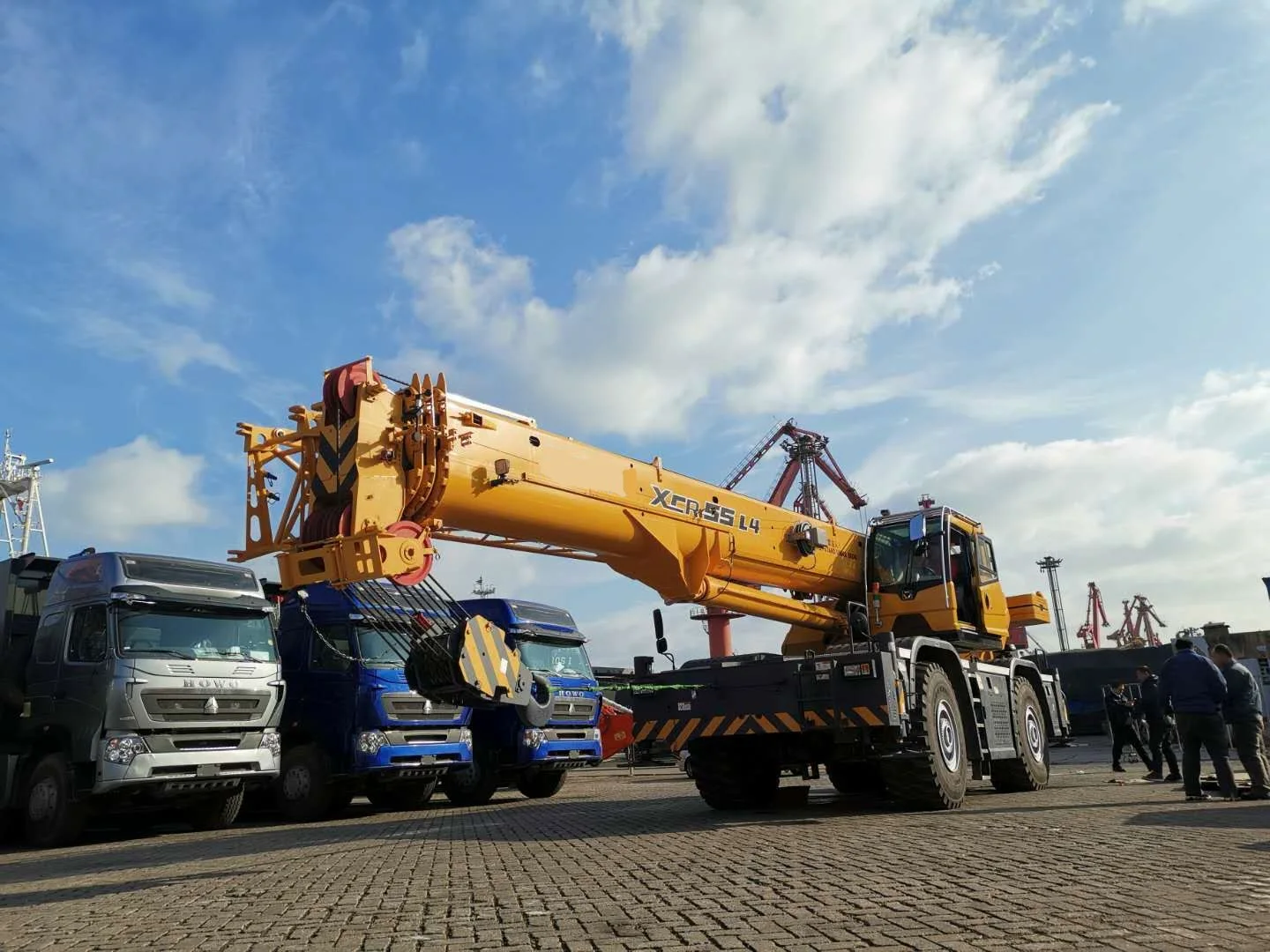

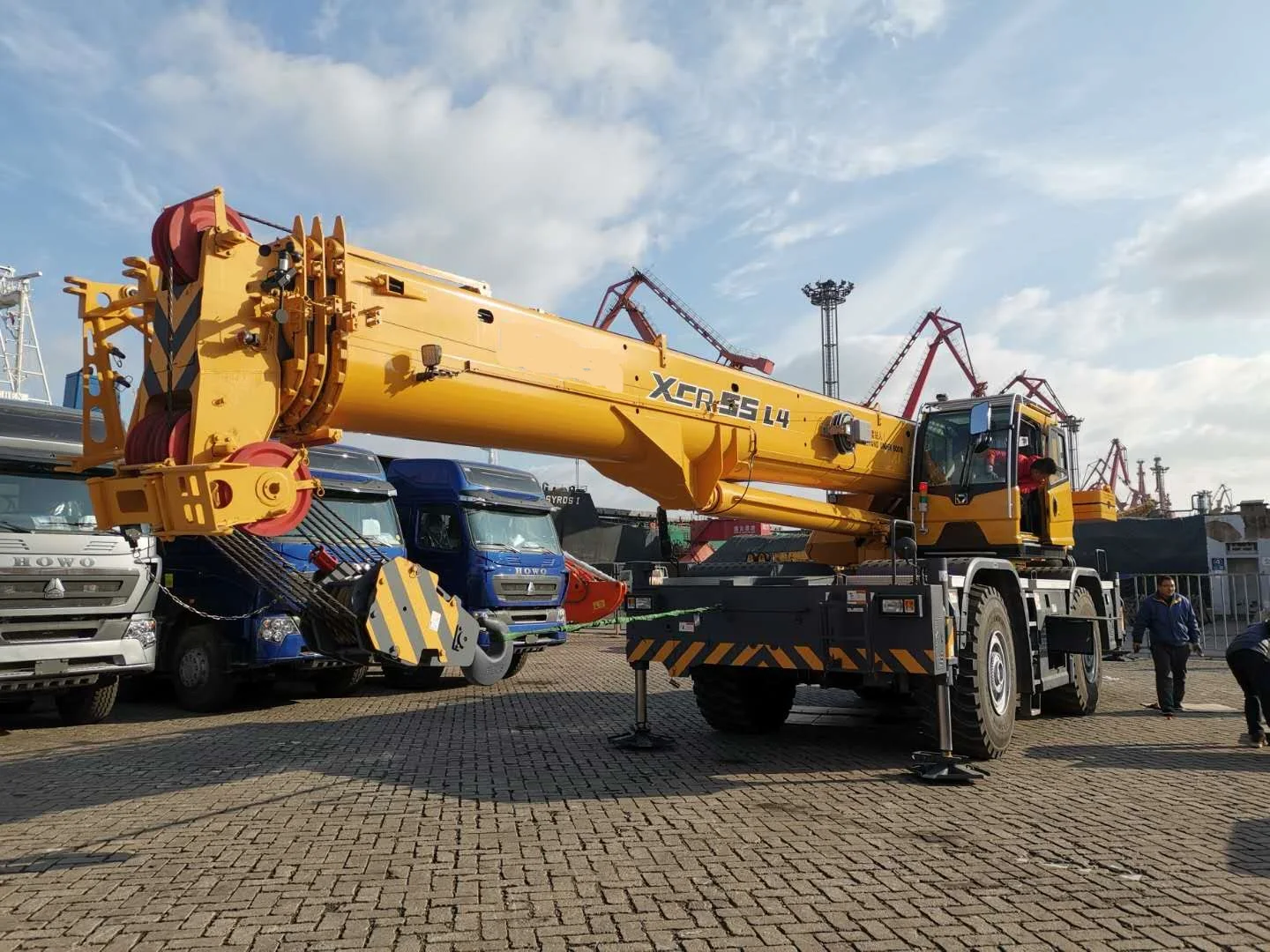

Product Show

XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow

XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow
XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow
XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow
XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow
XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow
Products Description
XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow
XCMG Brand Rough Terrain Crane XCR55L4 50 ton Used Mobile Crane.
The total rated loads given in the rated load charts are the maximum lifting capacity when the crane is set up on firm and level ground, which includes the weight of the hook block and slings. The weight of above-mentioned devices should be deducted from the rated lifting load.

The working radius shown in the rated load charts is the radius when the load is lifted off the ground, and it is the actual value including loaded boom deflection. Take boom deflection into consideration before beginning a lifting operation.

A lifting operation is permissible only when the wind force is below grade 5 (instantaneous wind speed is 14.1 m/s, wind pressure is 125 N/m2).

Before beginning lifting operation, the operator should know the weight of the load to be lifted and its working range, and then select proper working conditions. Never operate the crane beyond the limit shown in the chart. Use the lower value from the chart when the boom length or working radius is between the range of values.

Observe the boom angle limit. Never operate the crane with the boom angle beyond the recommended limit even if a load is not being carried. Otherwise, the crane will tip.

The boom should be extended according to the telescoping code shown by digits, which means the percentage of boom sections extended.
Specification
Project
Unit
Parameter
Wheel Base
(mm)
3600
Gross Vehicle Weight When Driving
(kg)
27334
Engine Net Power
(kw/r/min)
145
Max Travel Speed
(km/h)
41
Min Travel Speed
(km/h)
1.6
Min Turning Radius
(m)
9.6
Max Gradeability
(%)
78
Min. Ground Clearance of Machine
(mm)
345
Approach Angle
(°)
20.5
Departure Angle
(°)
19.6
Braking Distance
(m)
9
Max. Rated Lifting Capacity
(t)
30
Min. Rated Range
(m)
3
Max. Load Moment of Basic Jib
(kN·m)
989.8
Radius of Gyration of Turntable Tail
(mm)
3823
Basic Boom
(m)
10.2
Longest Main Boom
(m)
34.4
Longest Main Boom + Auxiliary Boom
(m)
42.2
Basic Boom
(m)
10.8
Longest Main Boom
(m)
35
Max. Slewing Speed
(r/min)
2.5
Main Hoisting Mechanism
(m/min)
140
Auxiliary Hoisting Mechanism
(m/min)
140
Product Show
XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow
XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow
XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow
XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow
XCMG Brand Used Rt Cranes XCR55L4 50 Ton Used Mobile Crane Yellow

Variations

Total options: 1 Max. Lifting Load;1 Model Number.

1. Max. Lifting Load(1): 55Ton

2. Model Number(1)

Shipping

Seller's Shipping Method 1 Change
Shipping total: $2,192,000.00 for 1 unit
Estimated delivery by Apr 10-Apr 24
